Increase video resolution with an opensource machine learning algorithm for upscaling video image frames using an automated command line script.
Bringing machine learning algorithms a step closer to usability.
Given a low-resolution video file, this script uses a machine-learning algorithm to increase (upscale) each frame’s resolution using information from neighbouring frames. The workhorse is the Real-time Spatial Temporal Transformer (RSTT) for Space-Time Video Super-Resolution (STVSR) algorithm from Geng, Liang, Ding, & Zharkov (2022) – all credit goes to the authors.
To upscale a full video file:
To upscale part of a video file, specify time span, a frame range, or a mixture of both. Use “-” to indicate start and (optionally) end points, or “+” to indicate start and (optionally) span. For example, assuming, a 10fps video, the following are all equivalent:
upscale input.vid --scene=0:01:00-0:01:10
upscale input.vid --scene=0:01:00+0:10
upscale input.vid --scene=600-700
upscale input.vid --scene=600+100
upscale input.vid --scene=1:00.00+100
If the upscale process is interrupted, then it is automatically resumed by re-running the command. To prevent this behaviour (clobber any existing output frames) use:
upscale input.vid --no-resume
Frames are extracted from video files using ffmpeg, so any video file format supported by ffmpeg will work. However, if you would like to use a different program (eg, VLC), or prefer to handle the extraction manually, then just place the frames as a sequence of .png files in a directory:
The output directory name is auto-generated as .input.out/, or can be specified manually:
upscale input.vid output-frames/
upscale input-frames/ output-frames/
The input directory name is also auto-generated – as .input.inp/. It is also possible to do all processing in a single directory. In this case, output frames clobber input frames, so the process cannot be resumed if interrupted:
upscale input.vid .input.vid.inp/
upscale input-frames/ input-frames/
Experimental: An output video file can be specified instead of an output directory. In this case, the script will attempt to generate a new video file with the upscaled frames replaced. Preservation of the original video quality and data is limited by what ffmpeg does by default:
upscale input.vid output.vid
This feature is experimental – use it at your own risk.
This script runs on Linux, and uses Python and PyTorch, and optionally ffmpeg for extracting and replacing frames from/to video files. To ensure that all dependencies exist, use the setup script included in the project.
To download and install the project from GitHub:
wget -O - https://github.com/arnon-weinberg/Upscale-video-RSTT/archive/master.tar.gz | tar xz
The setup script does not require root, and all changes are local, so uninstalling the project is a simple matter of removing its directory.
I built this script to test out the RSTT algorithm on practical examples. Now you can use it too, on your own videos!
RSTT offers 3 model variations with successively more parameters (higher quality output) at the cost of slower performance: RSTT-S (the default), RSTT-M, and RSTT-L. You can try out each model using the option
Frame generation is processing intensive, but all 3 variations of this algorithm are remarkably efficient. On my old laptop (no GPU), it can take as little as 5 seconds a frame to process a small 256×138 resolution video (sample image below), and nearly 1 minute per frame for 720×480. Processing time benefits greatly from the availability of a GPU, but if you don’t want to take advantage of it, then use of the GPU(s) can be turned off with the option
The RSTT models only offer x4 zoom, and use information from neighbouring frames processed in batches of 7. Some videos are greatly enhanced by super-resolution, while others are unaffected – presumably resolution is not the only problem with video quality, so this is not a universal solution for upgrading any low-quality video.
Bottom line: This machine learning algorithm is very practical to use, a fun project to play with, and perhaps you find it useful to enhance your own videos.

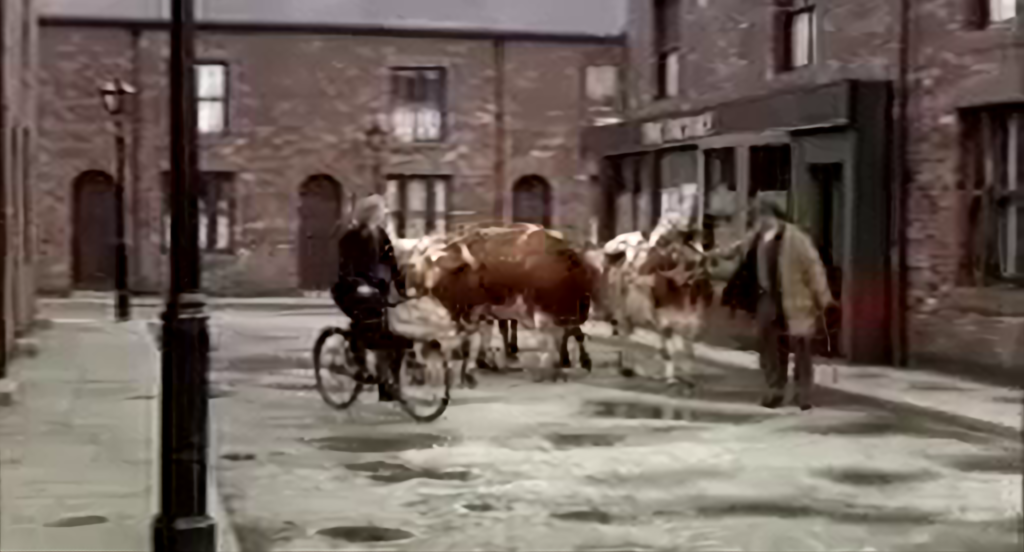

Command used: >
upscale 'Lilies - S1E1.mp4' --scene=1:43+10
